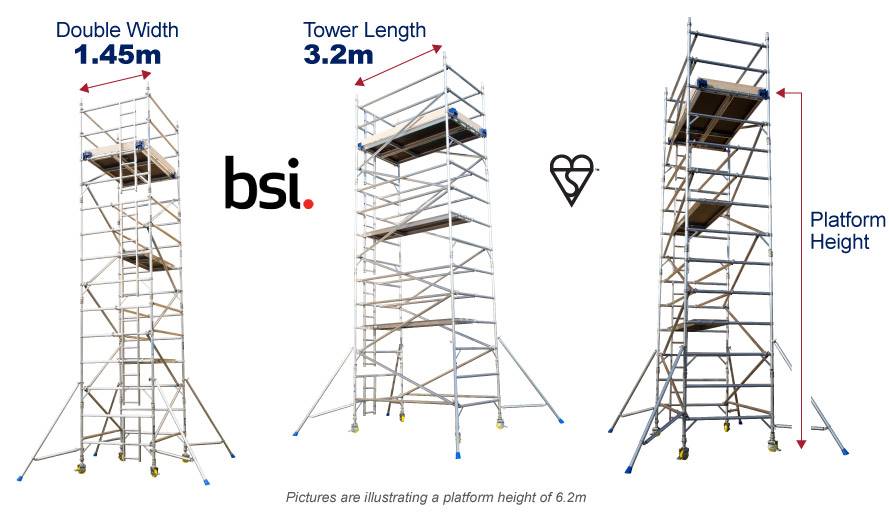

LEWIS Industrial Double Width Scaffold Towers 3.2m Long (10'x4')
9.2m (30'2") Working Height | 7.2m (23'7") Platform Height
Product Information
- Conforms to the requirements of the 3T erection and dismantling method as set out by HSE (Health & safety Executive),
- Certified to the very latest BSI Kitemark in respect to BSEN 1004 (Class 3) safety standard for your safety and reassurance. We Can Provide A copy Of Our certs Upon Request.
- Supper Increased rigidity
- Fully compatible with SGB BoSS Towers – If you have used these towers, or hired from larger hire companies, this is what our towers are compatible to.
- Integral ladders with comfortable D section for secure footing. Inferior Imports Have Oval Shaped Or Rectangular 30mm Diameter Bars.
- Aluminium Tube: 50.8mm Tube with a 1.8mm Wall thickness. Inferior Imports Have 30mm – 40mm Diameter ‘Poles’
- Frame horizontals have 500mm spacing and ribbed tubing for increased grip
- Two Frame widths of 850mm & 1450mm
- 3 deck lengths: 1.8m, 2.5m and introducing our new 3.2m
- Self-closing trapdoors & Simple wind lock clips
- Safe working load of 275kg per platform level up to a maximum of 950kg per tower (including self-weight). Inferior Imports Vary From 125kg – 200kg, but Never To the Current Standard. Please be aware of this important difference
- Patented trigger operated locking claws
- Fluted Floating spigots for easy assembly & dismantling. Inferior Imports do not have this at all.
- 150mm Locking Castors, With a certified Weight Load of 925kg
- Unique deck Extruded profile protects edge of deck board
- Lifetime Support – We are a phone call away. We offer 100% satisfaction to our customers. Before, During and After You Have Purchased.
Robust components that make up our Industrial LEWIS Scaffold Towers
 |
 |
 |
 |
|||
| Adjustable Legs/Wheels | Locking Frame Clip | Integral Ladder | Platform Hook | |||
 |
 |
 |
 |
|||
| Stabiliser Foot | Stabliser Clamp | Brace Hook | Platform Trap Deck | |||
Technical Information
| Components with this LEWIS Scaffold Tower | |
| Dual Locking Castors | 4 |
| 500mm Adjustable Leg | 4 |
| 2 Rung 1m Ladder Frame | 0 |
| 2 Rung 1m Span Frame | 0 |
| 3 Rung 1.5m Ladder Frame | 0 |
| 3 Rung 1.5m Span Frame | 0 |
| 4 Rung 2m Ladder Frame | 4 |
| 4 Rung 2m Span Frame | 4 |
| Trap Door Platform | 3 |
| Fixed Platform | 1 |
| Horizontal Brace (red trigger) | 14 |
| Diagonal Brace (blue trigger) | 13 |
| (New style) Complete Toe-board Set | 1 |
| Standard Stabiliser | 0 |
| Jumbo Stabiliser | 4 |
| Instruction Manual & BSEN1004 certificate of conformity | 1 |
| Tower Specification |
| Working Height: 9.2m |
| Platform Height: 7.2m |
| Base Dimensions: 3.2m Long x 1.45m Wide (10ft x 4ft) |
| Classification: BS EN1004 |
| Availability: Next Day |
Retail Price: £1963.99
| Our Price: £1,634.99+vat |
 |
